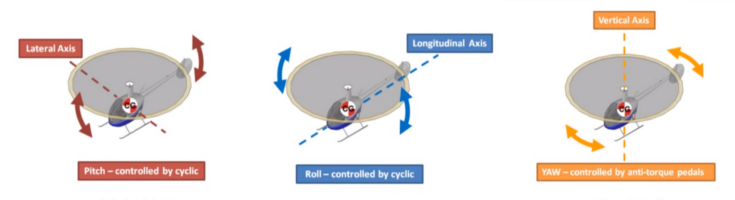

When maneuvering in the air, the helicopter moves around the Three Axes of Flight which all act through the helicopter’s center of gravity (CG):
- Longitudinal Axis (Roll or Bank)
- Lateral Axis (Pitch)
- Vertical Axis (Yaw)
Video
The video below explains the Three Axes of Flight, as demonstrated in a Robinson R22 helicopter:
Resources
- FAA Helicopter Flying Handbook Chapter 2 – Aerodynamics of Flight
- FAA Pilot’s Handbook of Aeronautical Knowledge Chapter 5 – Aerodynamics of Flight
